Threaded Shank Drill NAS 965
Threaded-shank drills are made of cobalt high-speed steel with a 135° point angle. The drills are surface-treated and heat-treated for drilling hard, tough, high-strength materials, and connect to pneumatic tools through the threaded shank. They can perform drilling work in confined spaces, such as aircraft cabins.
ST -- Stubby
S -- Short
L -- Long
VS -- Very Stubby
EL -- Extra Long
70 matching sizes

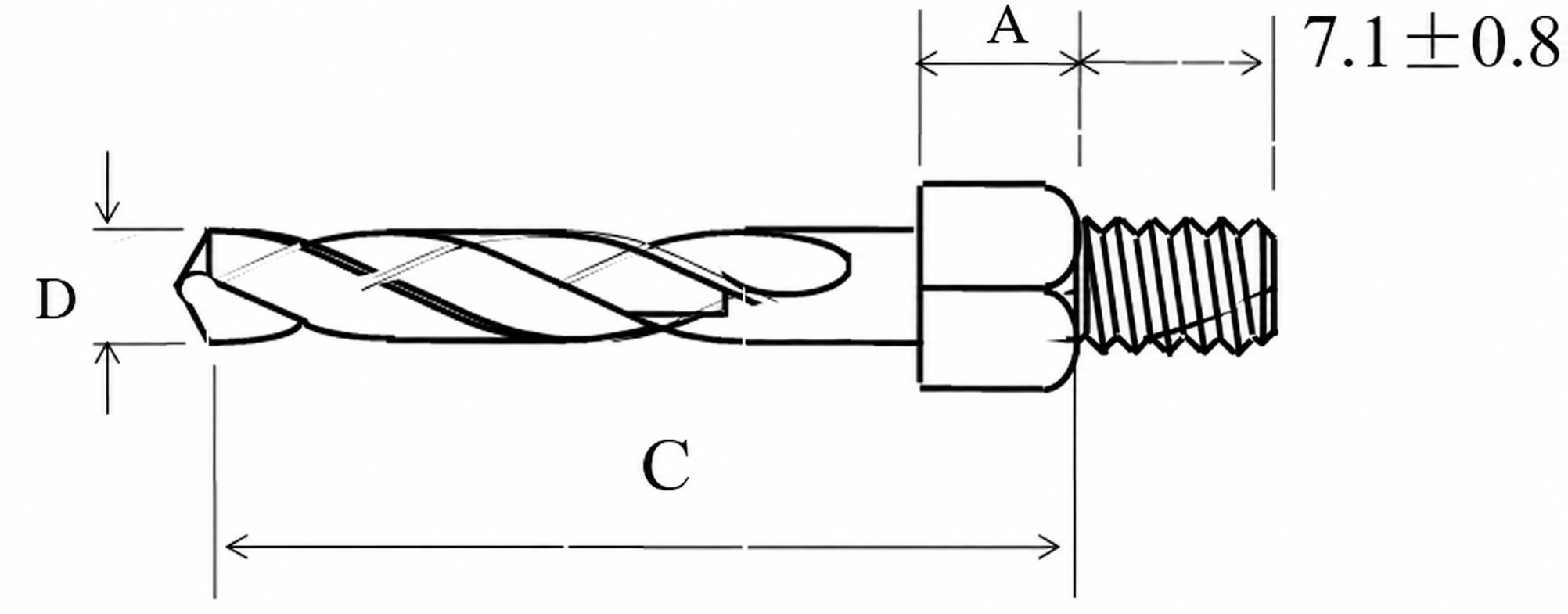

| Product code | Length series | Size | D Diameter (inches) | C length (inches) | A length (inches) | Thread specification | Materials | Quantity |
|---|---|---|---|---|---|---|---|---|
DRNAS965F0116ST-D | ST | 1/16 | 0.0625 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N052ST-D | ST | #52 | 0.0635 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N051ST-D | ST | #51 | 0.0670 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N050ST-D | ST | #50 | 0.0700 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N049ST-D | ST | #49 | 0.0730 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N048ST-D | ST | #48 | 0.0760 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965F0564ST-D | ST | 5/64 | 0.0781 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N047ST-D | ST | #47 | 0.0785 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N046ST-D | ST | #46 | 0.0810 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N045ST-D | ST | #45 | 0.0820 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N044ST-D | ST | #44 | 0.0860 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N043ST-D | ST | #43 | 0.0890 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N042ST-D | ST | #42 | 0.0935 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965F0332ST-D | ST | 3/32 | 0.0938 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N041ST-D | ST | #41 | 0.0960 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N040ST-D | ST | #40 | 0.0980 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N039ST-D | ST | #39 | 0.0995 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N038ST-D | ST | #38 | 0.1015 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N037ST-D | ST | #37 | 0.1040 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N036ST-D | ST | #36 | 0.1065 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965F0764ST-D | ST | 7/64 | 0.1094 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N035ST-D | ST | #35 | 0.1100 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N034ST-D | ST | #34 | 0.1110 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N033ST-D | ST | #33 | 0.1130 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N032ST-D | ST | #32 | 0.1160 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N031ST-D | ST | #31 | 0.1200 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965F0108ST-D | ST | 1/8 | 0.1250 | 1/2 | 3/16 | 1/4-28UNF | ||
DRNAS965N030ST-D | ST | #30 | 0.1285 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N029ST-D | ST | #29 | 0.1360 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N028ST-D | ST | #28 | 0.1405 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965F0964ST-D | ST | 9/64 | 0.1406 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N027ST-D | ST | #27 | 0.1440 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N026ST-D | ST | #26 | 0.1470 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N025ST-D | ST | #25 | 0.1495 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N024ST-D | ST | #24 | 0.1520 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N023ST-D | ST | #23 | 0.1540 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965F0532ST-D | ST | 5/32 | 0.1562 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N022ST-D | ST | #22 | 0.1570 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N021ST-D | ST | #21 | 0.1590 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N020ST-D | ST | #20 | 0.1610 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N019ST-D | ST | #19 | 0.1660 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N018ST-D | ST | #18 | 0.1695 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965F1164ST-D | ST | 11/64 | 0.1719 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N017ST-D | ST | #17 | 0.1730 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N016ST-D | ST | #16 | 0.1770 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N015ST-D | ST | #15 | 0.1800 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N014ST-D | ST | #14 | 0.1820 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N013ST-D | ST | #13 | 0.1850 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965F0316ST-D | ST | 3/16 | 0.1875 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N012ST-D | ST | #12 | 0.1890 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N011ST-D | ST | #11 | 0.1910 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N010ST-D | ST | #10 | 0.1935 | 9/16 | 3/16 | 1/4-28UNF | ||
DRNAS965N009ST-D | ST | #9 | 0.1960 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N008ST-D | ST | #8 | 0.1990 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N007ST-D | ST | #7 | 0.2010 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965F1364ST-D | ST | 13/64 | 0.2031 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N006ST-D | ST | #6 | 0.2040 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N005ST-D | ST | #5 | 0.2055 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N004ST-D | ST | #4 | 0.2090 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N003ST-D | ST | #3 | 0.2130 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965F0732ST-D | ST | 7/32 | 0.2200 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N002ST-D | ST | #2 | 0.2210 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965N001ST-D | ST | #1 | 0.2280 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965LAST-D | ST | A | 0.2340 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965F1564ST-D | ST | 15/64 | 0.2344 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965LBST-D | ST | B | 0.2380 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965LCST-D | ST | C | 0.2420 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965LDST-D | ST | D | 0.2460 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965LEST-D | ST | E / 1/4 | 0.2500 | 5/8 | 1/4 | 1/4-28UNF | ||
DRNAS965LFST-D | ST | F | 0.2570 | 5/8 | 1/4 | 1/4-28UNF |
Can't find the size you need? Custom production is available.Submit custom email
